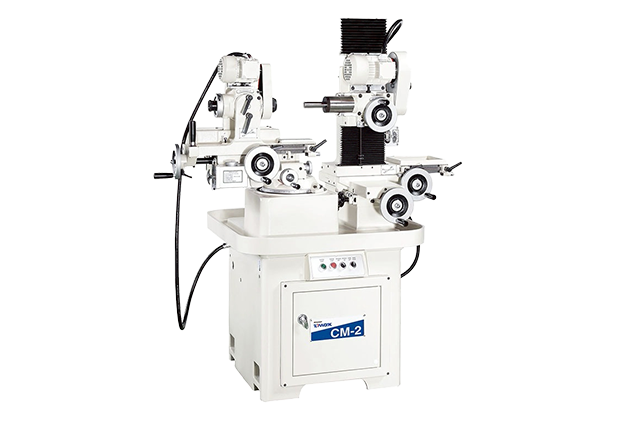

CM-2 MONASET Tool Grinder

Accuracy Rigidity Efficiency

CM-2 Machine Specifications

Workhead
Max. Swing diameter 304 mm
Max. Collet work diameter 32 mm
Min. Collet work diameter 5 mm
Max. Spiral angle 60º
Max. Distance between nose of spindle and center of tailstock 100 mm,152 mm
Grinding wheel head
Grinding Diameter 100 mm
Workhead
Slide travel 130 mm
Offset slide travel 100 mm
Front of center 50 mm
Rear of center 50 mm
Angle adjustment of Workhead
Rotation of Horizontal plane ±105º(210º)
Rotation of Vertical plane ±40º
Grinding wheelhead
Longitudinal Slide travel 110 mm
Vertical Slide travel 240 mm
Cross slide travel 170 mm
Spindle speed
Workhead speed 50 HZ / 370 rpm
60 HZ / 440 rpm
Grinding wheelhead speed 4000,6000,8000 rpm
Motor
Workhead 1/4 HP (0.186 kw)
Grinding wheelhead 1/2 HP (0.373 kw)
Machine
L x W x H 1600 x1150 x 1650 mm
Weight 860 kg

Standard Accessories

Wheelhead toothrest assembly with extension bar
Grinding wheel guards with extension bar
Front stock support
Straight cylindrical collets: metric sizes:5, 6, 8, 10, 12, 16, 20, 25 & 32mm
Straight cylindrical collets: inch sizes:1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, 1, 1 1/8 & 1 1/4"
Set of (5) grinding wheel flanges. (4)standard and (1) extension flange.
Diamond holder bracket
Wrench for workhead
Wrench for workhead
Adjustable tailstock support unit
Spanner for grinding wheel
Standard Arbor
Screw driver
Set of wrenches
Double-end spanner
Set of (4) index plates for spiral lead Machanism 0,8,10 & 12 divisions
Tool box
Grinding wheel (one each of straight, flaring cup and dish shape
Additional diamond truing tool with diamond nib
Spring-loaded index pawl for workhead
1/2" wheel flange and spanner

Optional Attachment

Large cutter radius grinding attachment
Four-inch universal six-jaw chuck for workhead
Additional index plates for spiral lead indexing unit-24T
Extended collect set with Wrench for smaller collect Included in φ3 mm collet
Frequency inverter for grinding wheel spindle - 2 hp
Upgrading Grindng - wheel- spindle motor - 2 hp
Dust collector attachment
